Why choose Alugutter
- 50-year functional life
- UK manufactured, factory-direct
- Architectural external-grade polyester powder coating
- Manufactured from marine-grade aluminium
Description

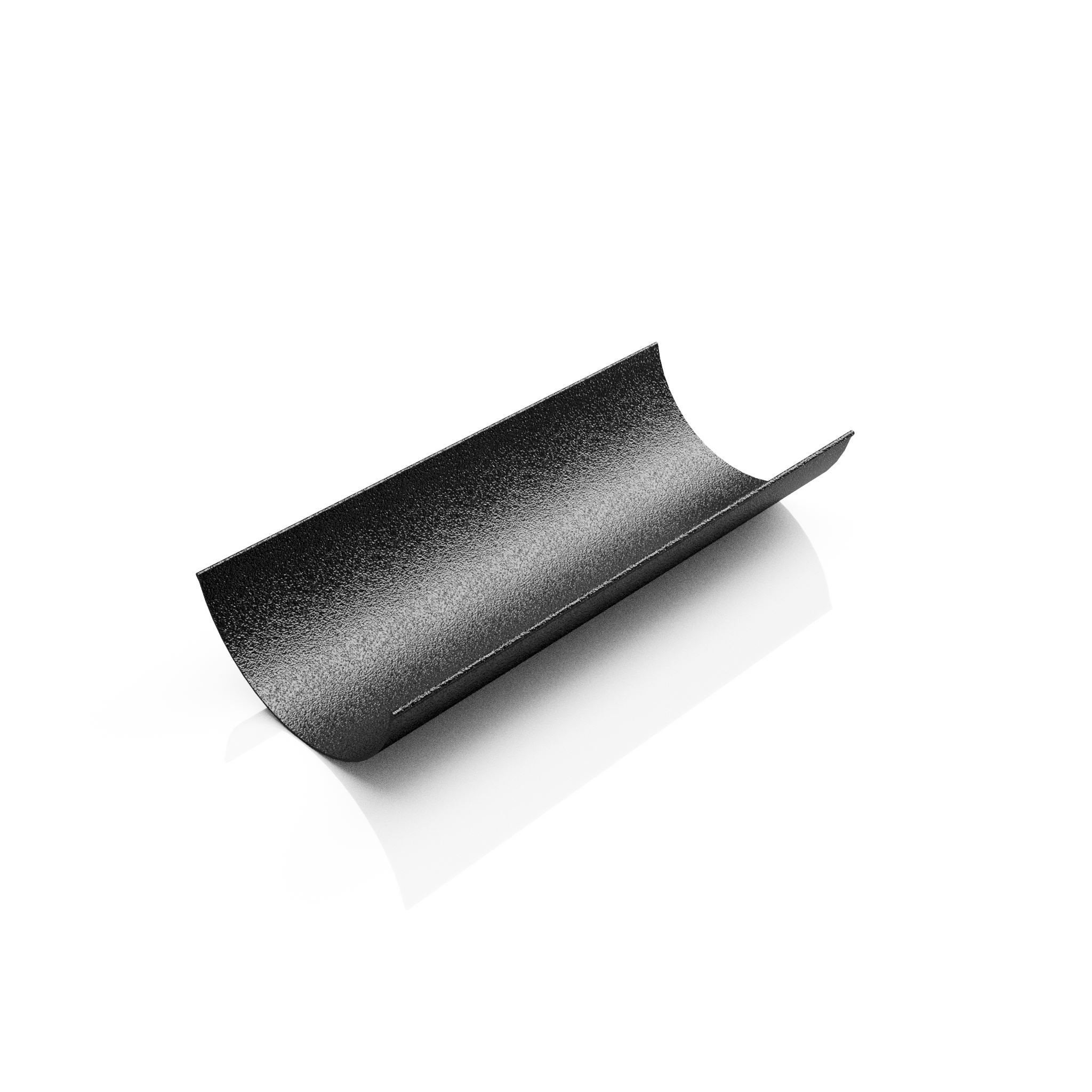

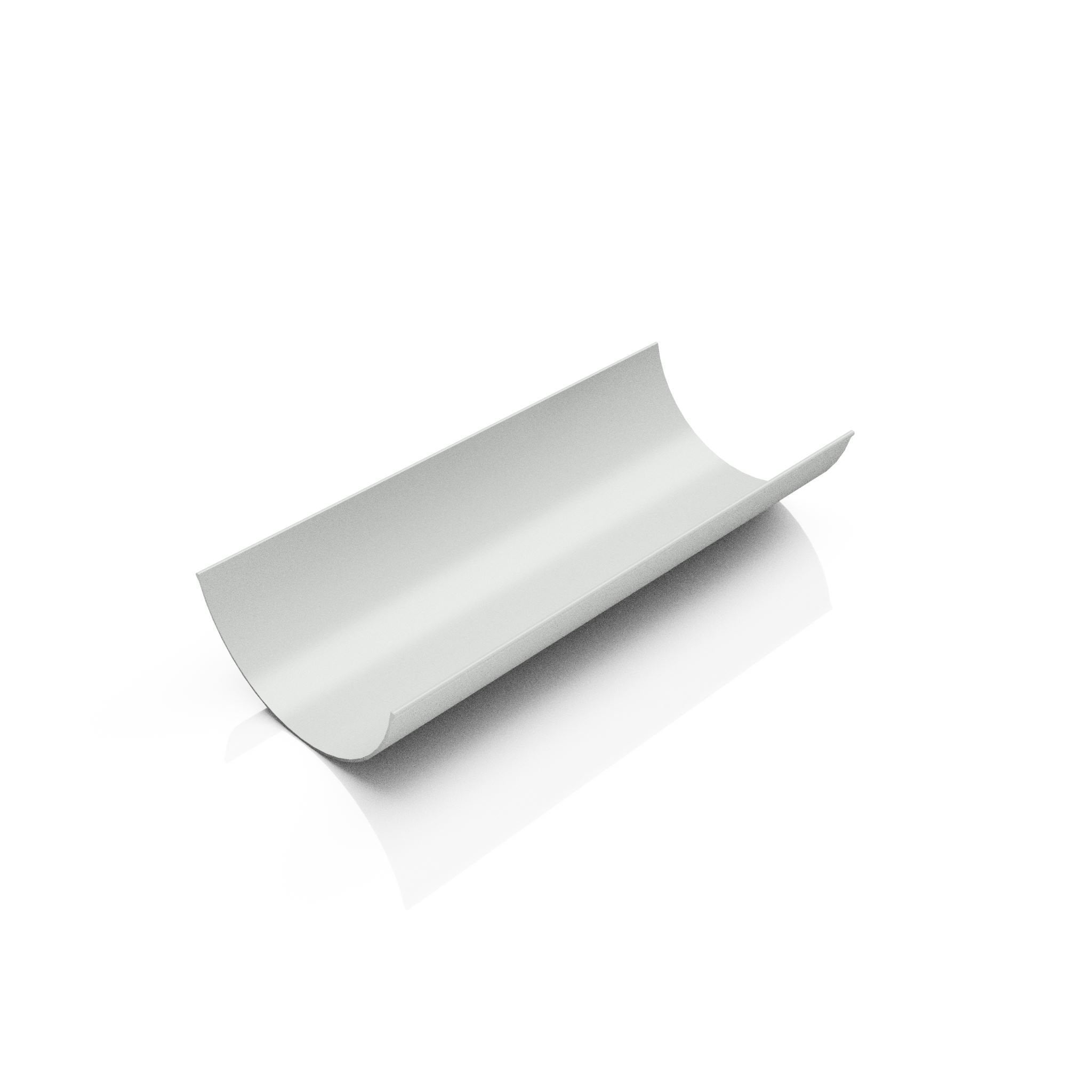

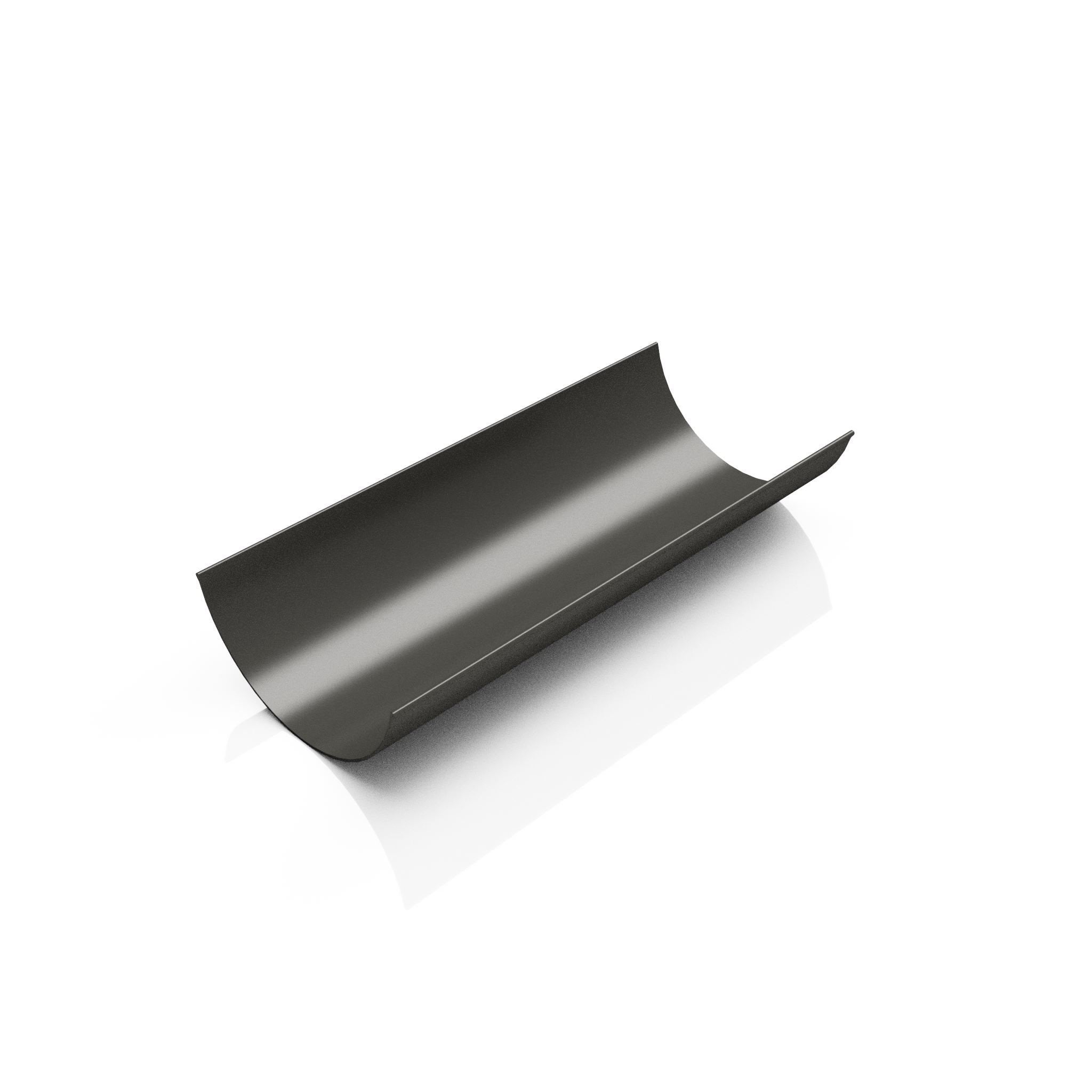

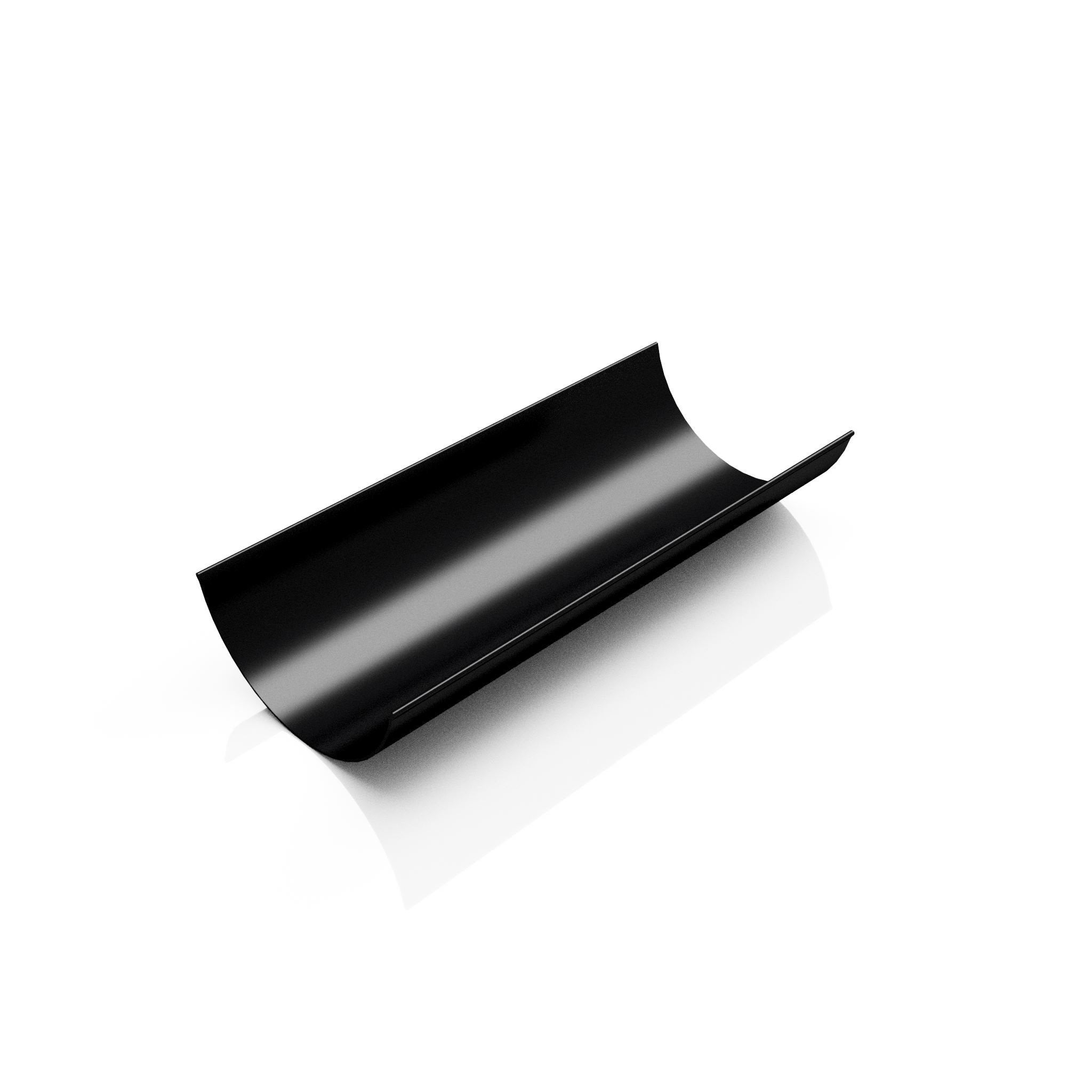

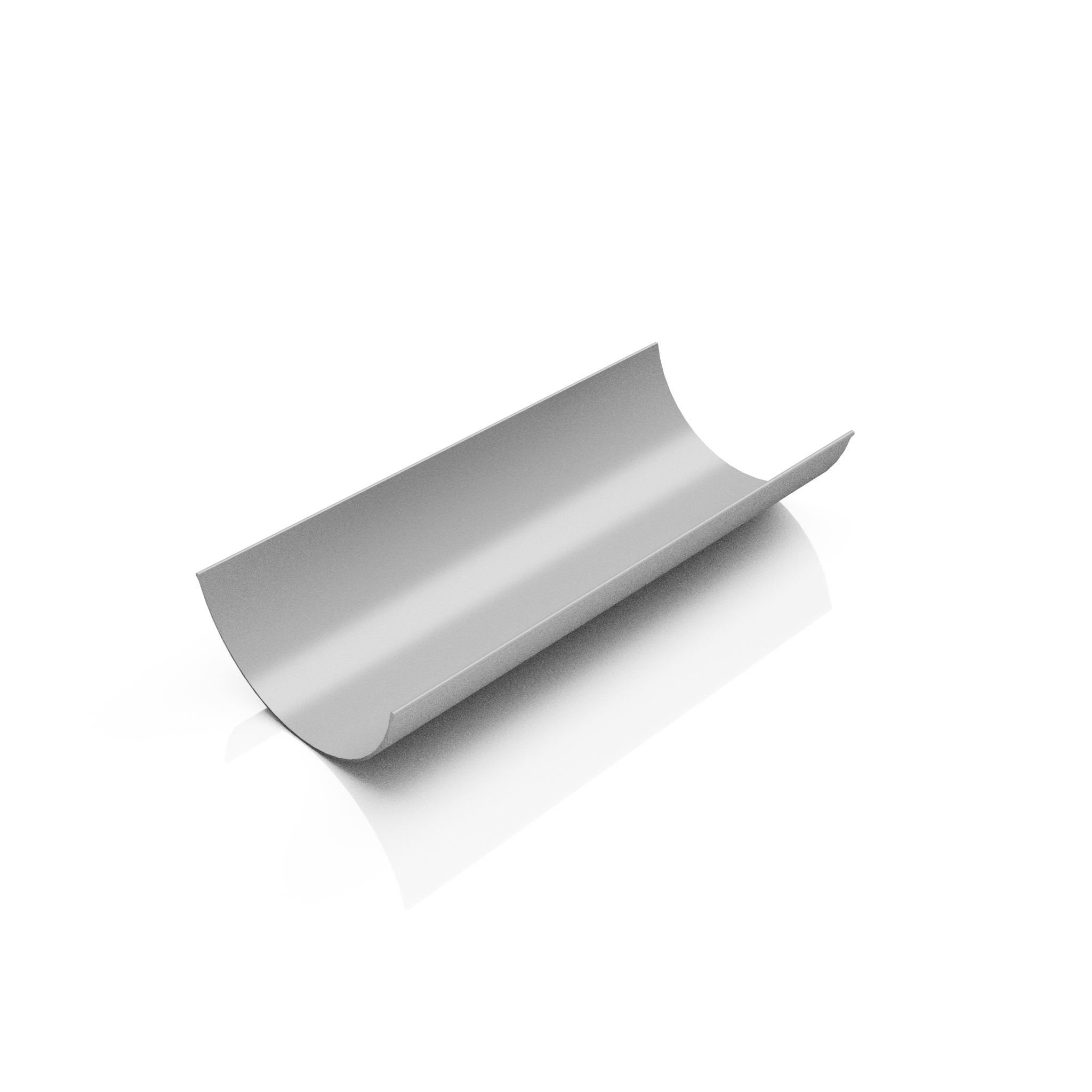

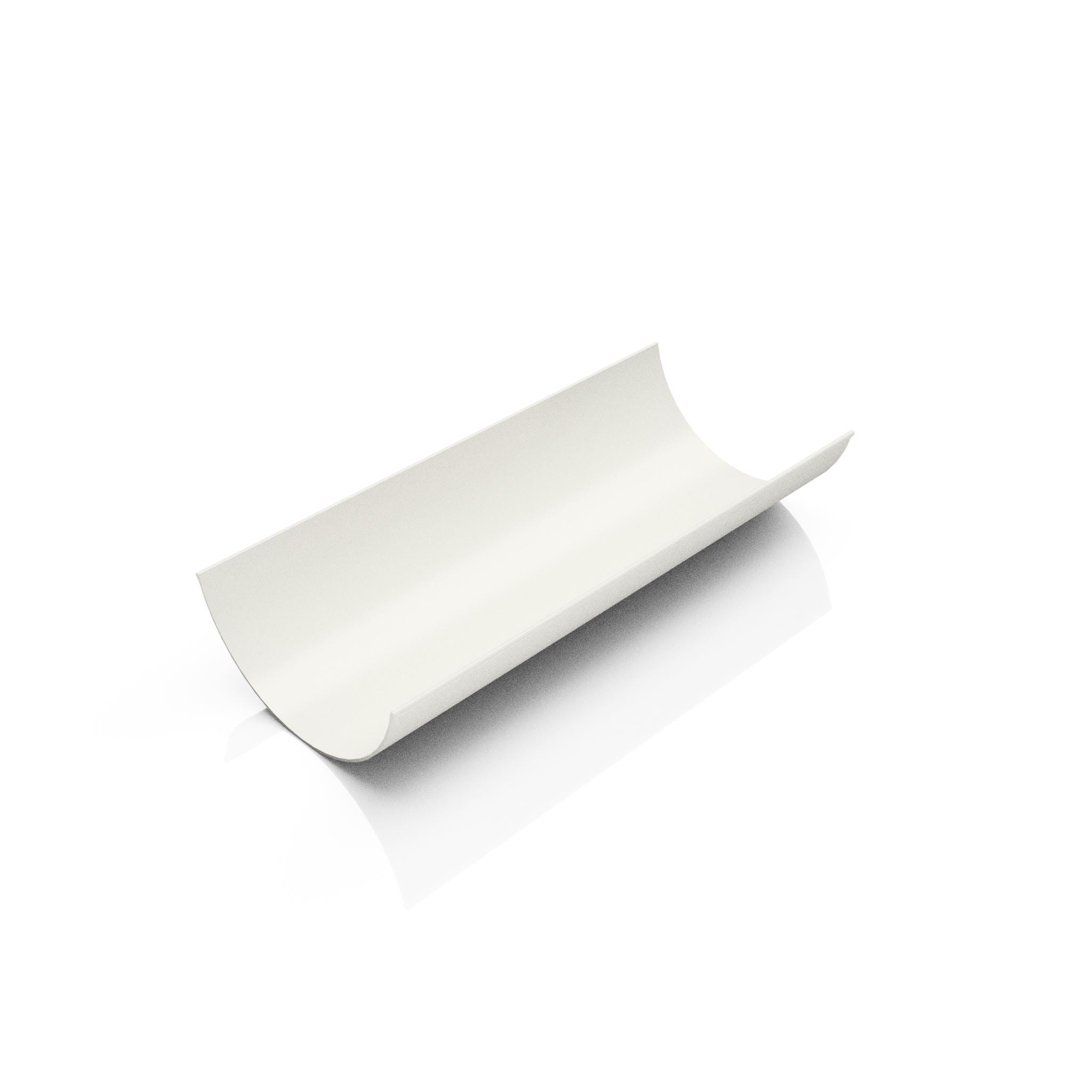

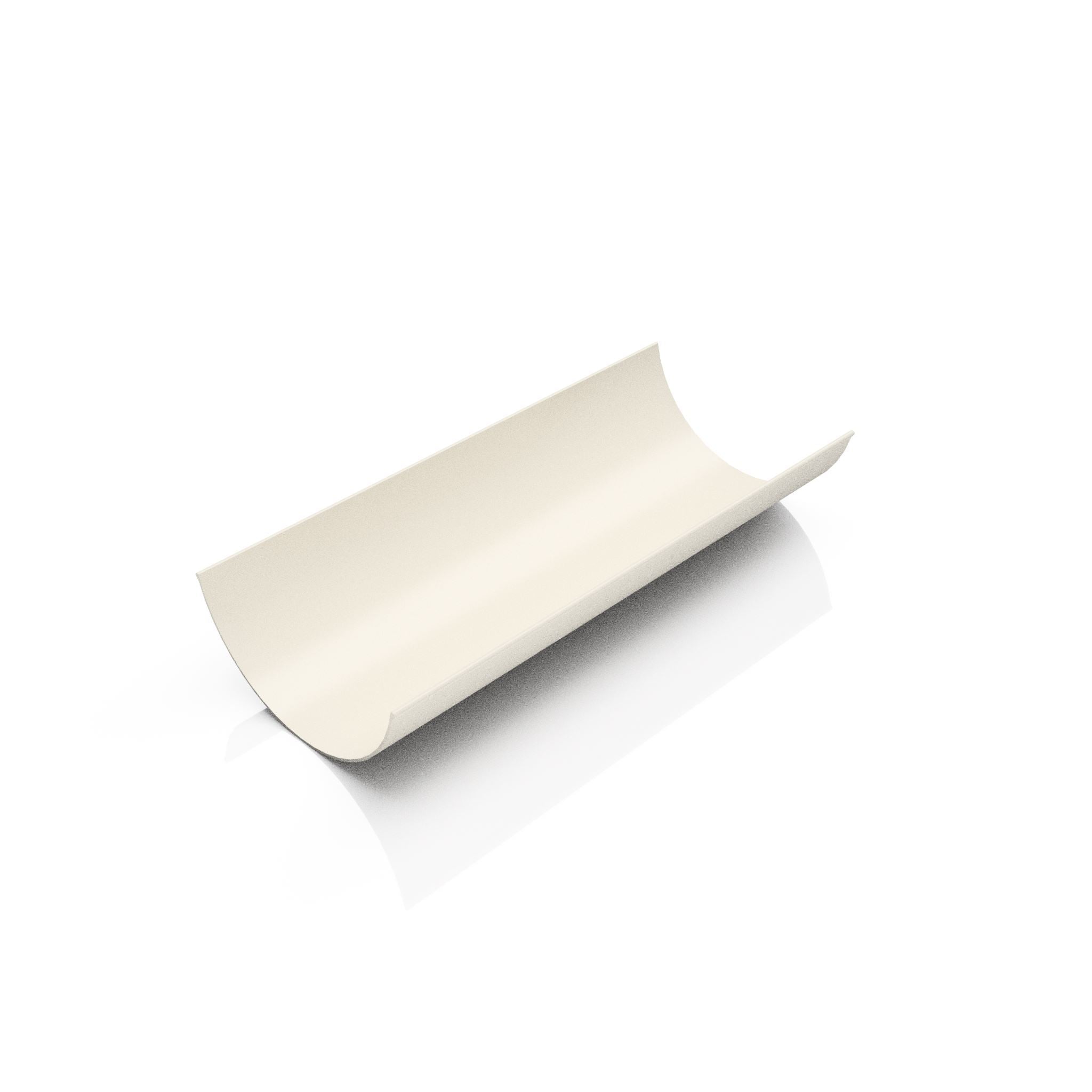

The GHR1 is a 125mm half round aluminium gutter length, measuring 133mm x 56mm x 3 metres (3000mm) long. It is extruded from 6063-T6 hardened aluminium and polyester powder coated in Interpon D1036 architectural-grade powder. Straight, strong and corrosion-resistant, with a functional life of over 50 years. Manufactured in-house and supplied factory-direct.
Lightweight, rustproof and rot-proof, aluminium half round guttering is the low-maintenance alternative to cast iron and uPVC — it will not warp, split or require repainting, and the finish is fully over-paintable should you wish to change colour later. Ideal for efficient rainwater management on residential, heritage and commercial properties, and 100% recyclable at end of life.
This is a single 3 metre length. For the full system — jointers, angles, running outlets, stop ends, brackets and downpipes — see our aluminium half round gutters range.
Colour: stocked in RAL 7016 Anthracite Grey and Textured Black (5 working-day lead time). A wide range of non-stocked RAL colours is available to order on a 10 working-day lead time.
Key features:
- 125mm half round profile — traditional appearance with high flow capacity
- 6063-T6 extruded aluminium with a functional life of over 50 years
- Interpon D1036 architectural powder coat over a hand-sanded pre-treatment for superior adhesion; over-paintable finish
- Jointers, angles, running outlets and stop ends clip directly onto the gutter length for fast, seamless assembly
- Fascia brackets (GHR3) fix at maximum 1 metre centres — sold separately
- Compliant with BS 9101:2017. Fire Classification EN 13501-1: A2-s1,d0
- Designed to BS EN 12056-3 for rainwater drainage
Specification
| Product code | GHR1 |
|---|---|
| Profile | 125mm half round |
| Overall dimensions | 133mm wide x 56mm deep |
| Length | 3 metres (3000mm) |
| Material | 6063-T6 hardened aluminium extrusion |
| Finish | Interpon D1036 polyester powder coat (PPC), architectural grade |
| Stocked colours | RAL 7016 Anthracite Grey, Textured Black |
| Flow capacity | 1.25 L/s (end outlet); 2.5 L/s (centrally positioned outlet) |
| Fire classification | A2-s1,d0 to EN 13501-1 |
| Standards | BS 9101:2017; drainage design to BS EN 12056-3 |
| Bracket centres | 1 metre maximum |
| Functional life | Over 50 years |
| Decorative life | 25 years (over-paintable) |
| Recyclable | Yes — 100% |
How many brackets do I need?
Fascia brackets are sold separately and fix at a maximum of 1 metre centres. As a guide, allow 3 brackets per 3 metre gutter length, plus one additional bracket for every running outlet, angle and stop end, positioning a bracket within 150mm of each of these fittings and of every joint. Reduce the spacing in areas exposed to high wind or heavy snow loading.
If you are unsure of your requirements our expert technical team will be pleased to assist. Whether you have a list of parts, architectural drawings or hand sketches please email us your details.
We have a range of installation videos to assist contractors and show how our products are installed.
Our installation guides are available for download and give step by step pictorial instruction.
Our product data sheets contain all relevant information relating to our products. Each sheet also contains interactive tabs linking to other useful resources.
Used by building material specifiers, our product specification sheets give the relevant clauses and product details to be used in building design documents.
Architectural eaves gutter drawings that can be copied into architectural drawings ensuring correct construction design details are followed.
This page allows you to correctly size your gutter and downpipe system according to roof size - in full accordance with the BS EN12056-3 gravity rainwater drainage design standard.
