Why choose Alugutter
- 50-year functional life
- UK manufactured, factory-direct
- Architectural external-grade polyester powder coating
- Manufactured from marine-grade aluminium
Description

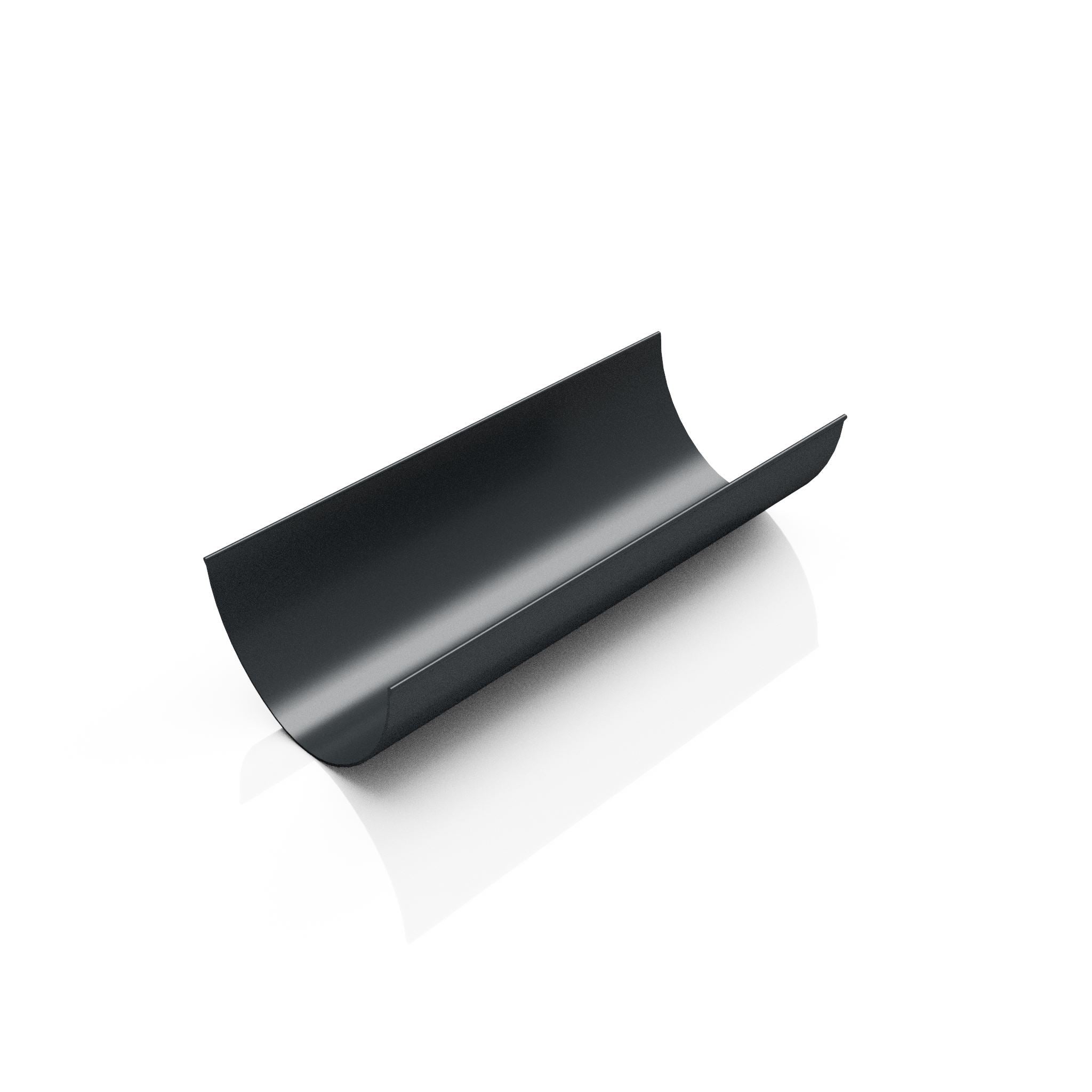

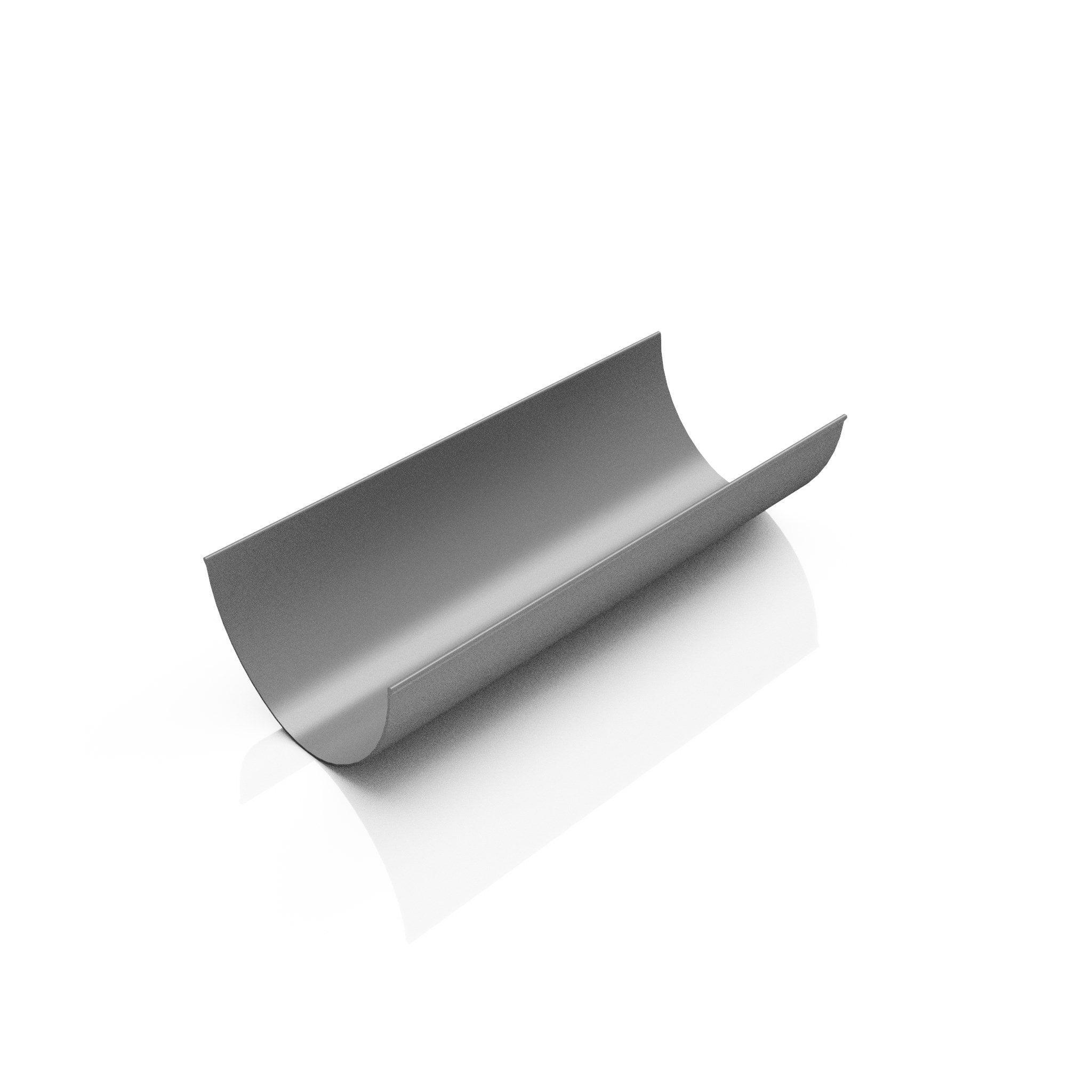

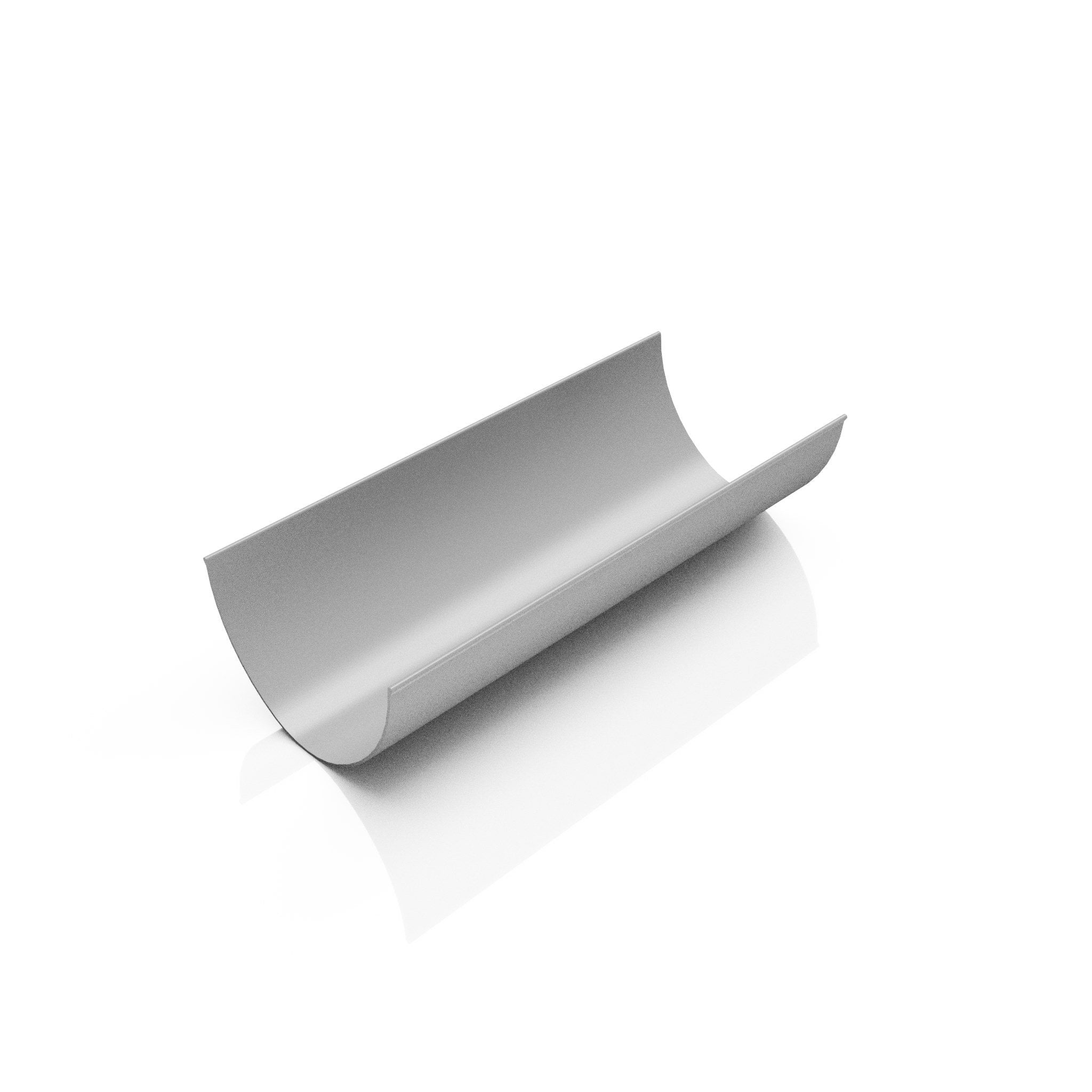

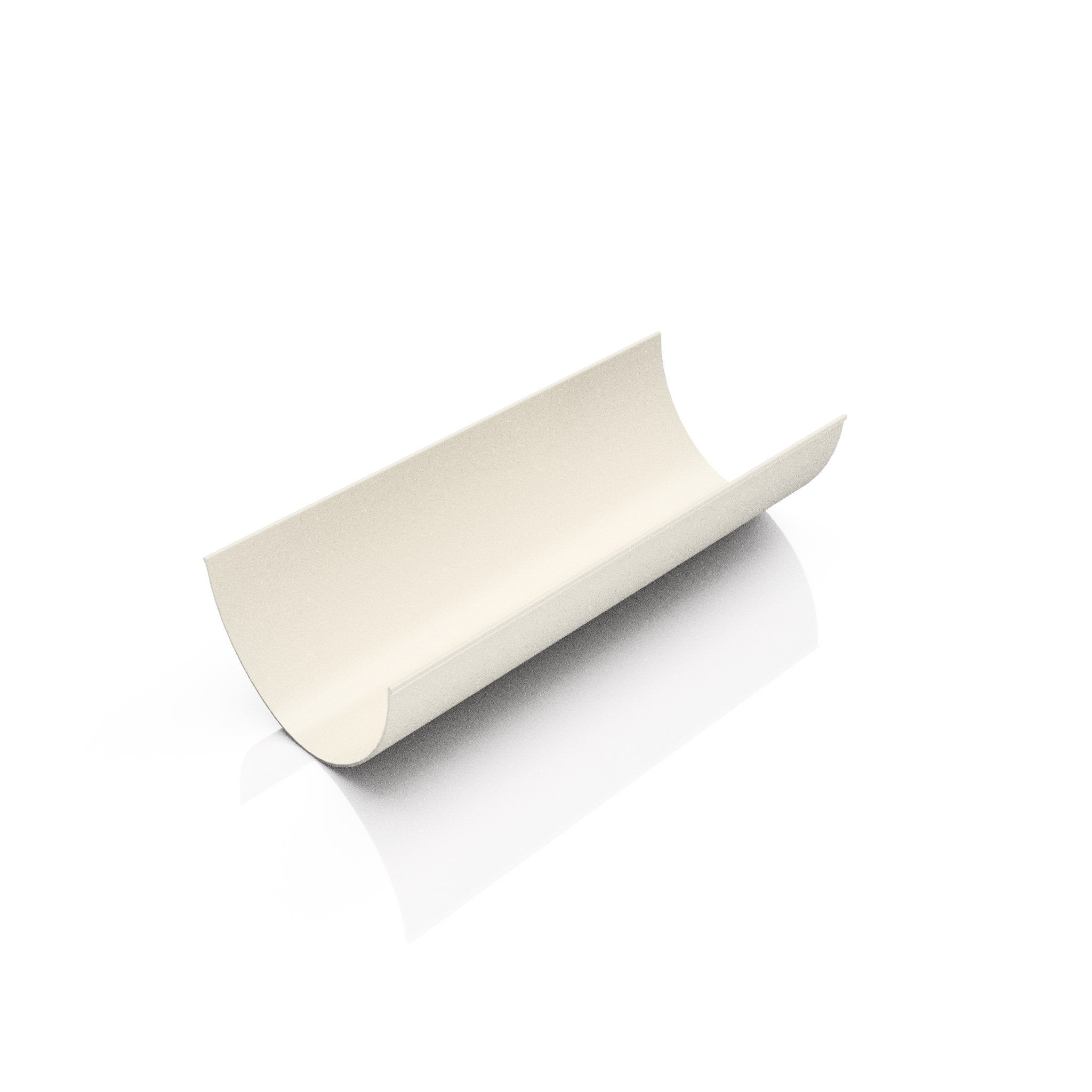

The GD1 is a 130mm deepflow aluminium gutter length, 3 metres (3000mm) long, with a measured section of 128mm wide by 75mm deep. Extruded from 6063-T6 hardened aluminium, its deep semi-elliptical shape holds and channels far more water than a standard half round, and its smooth curve helps clear debris as it flows. Each length is powder coated in Interpon D1036 architectural finish over a hand-sanded pre-treatment, and lasts a functional 50 years and more. Made in-house, sold factory-direct.
Deepflow is the profile to specify when half round capacity is not enough — larger roof areas, steep pitches and high-rainfall sites all shed water faster than a shallow gutter can take. Aluminium delivers that capacity without the weight of cast iron or the fading and brittleness of uPVC, and the finish can be over-painted later if required. The gutter is fully recyclable at the end of its long service life.
This is a single 3 metre length. Its jointers, angles, running outlets and stop ends clip straight onto the gutter for a fast, watertight assembly. For the full range of fittings, brackets and matching downpipes, see our aluminium deepflow gutters range.

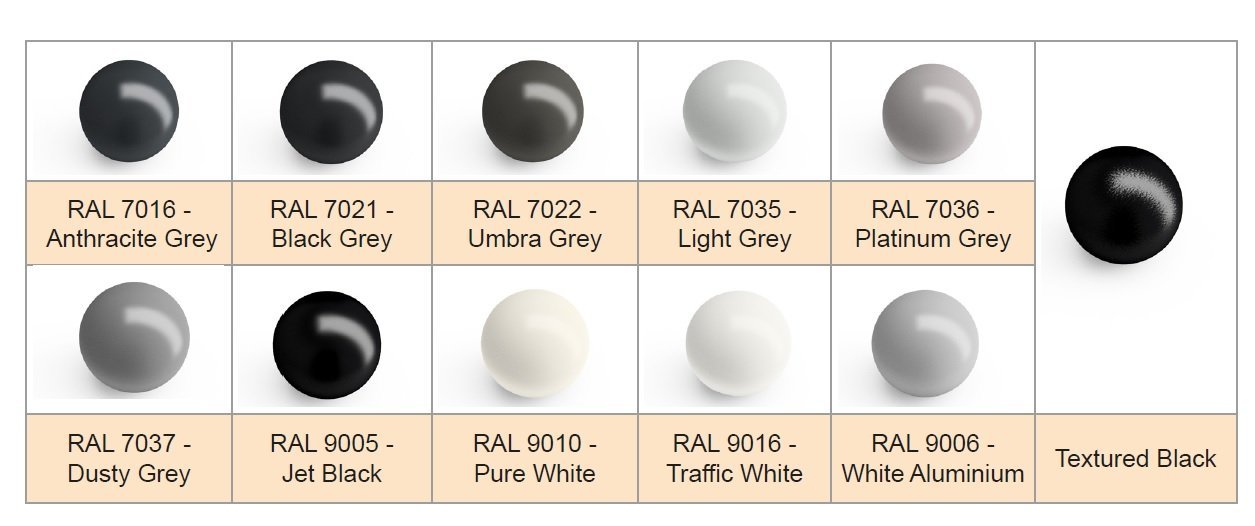

Colour: stocked in RAL 7016 Anthracite Grey and Textured Black (5 working-day lead time). Further RAL colours are available to order on a 10 working-day lead time.
Key features:
- 130mm deepflow (semi-elliptical) profile — high capacity and self-cleansing flow
- 6063-T6 extruded aluminium with a functional life of over 50 years
- Interpon D1036 architectural powder coat on a hand-sanded pre-treatment; over-paintable finish
- Snap-together fittings — jointers, angles, outlets and stop ends clip onto the gutter length
- Fascia brackets (GD3) fix at 1 metre centres — sold separately
- Handles larger roof areas than half round — suited to high-rainfall sites
- Compliant with BS 9101:2017. Fire Classification EN 13501-1: A2-s1,d0
- Designed to BS EN 12056-3 for rainwater drainage
Specification
| Product code | GD1 |
|---|---|
| Profile | 130mm deepflow (semi-elliptical) |
| Overall dimensions | 128mm wide x 75mm deep |
| Length | 3 metres (3000mm) |
| Material | 6063-T6 hardened aluminium extrusion |
| Finish | Interpon D1036 polyester powder coat (PPC), architectural grade |
| Stocked colours | RAL 7016 Anthracite Grey, Textured Black |
| Flow capacity | 2.1 L/s (end outlet); 4 L/s (centrally positioned outlet) |
| Fire classification | A2-s1,d0 to EN 13501-1 |
| Standards | BS 9101:2017; drainage design to BS EN 12056-3 |
| Bracket centres | 1 metre maximum |
| Functional life | Over 50 years |
| Decorative life | 25 years (over-paintable) |
| Recyclable | Yes — 100% |
How many brackets do I need?
Order fascia brackets (GD3) separately and fix them at 1 metre centres. As a rule of thumb, allow 3 brackets to each 3 metre length and one more at every outlet, angle and stop end, keeping a bracket within 150mm of each fitting and each joint. Reduce the centres on exposed, high-wind or heavy-snow elevations.
If you are unsure of your requirements our expert technical team will be pleased to assist. Whether you have a list of parts, architectural drawings or hand sketches please email us your details.
We have a range of installation videos to assist contractors and show how our products are installed.
Our installation guides are available for download and give step by step pictorial instruction.
Our product data sheets contain all relevant information relating to our products. Each sheet also contains interactive tabs linking to other useful resources.
Used by building material specifiers, our product specification sheets give the relevant clauses and product details to be used in building design documents.
Architectural eaves gutter drawings that can be copied into architectural drawings ensuring correct construction design details are followed.
This page allows you to correctly size your gutter and downpipe system according to roof size - in full accordance with the BS EN12056-3 gravity rainwater drainage design standard.
