Description

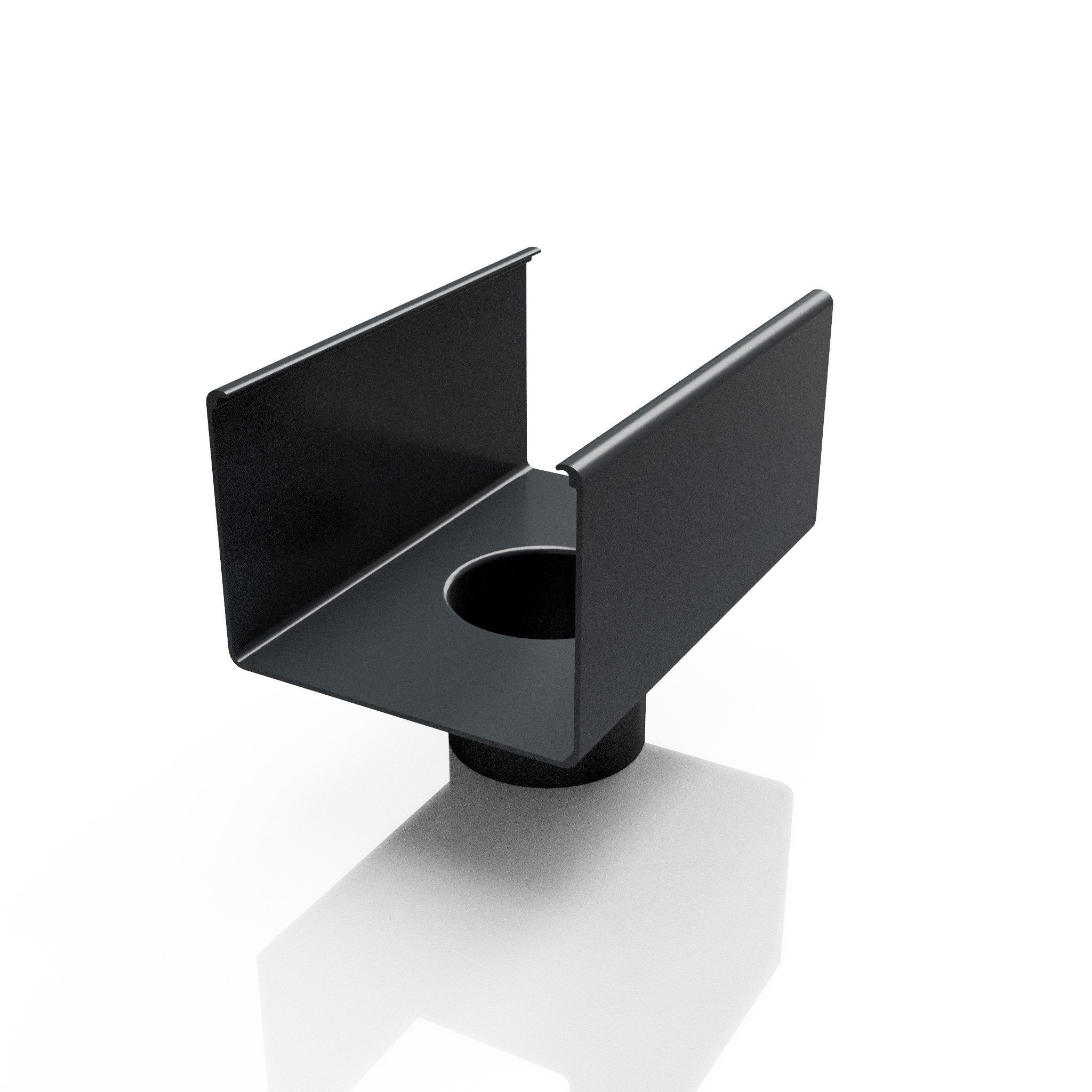

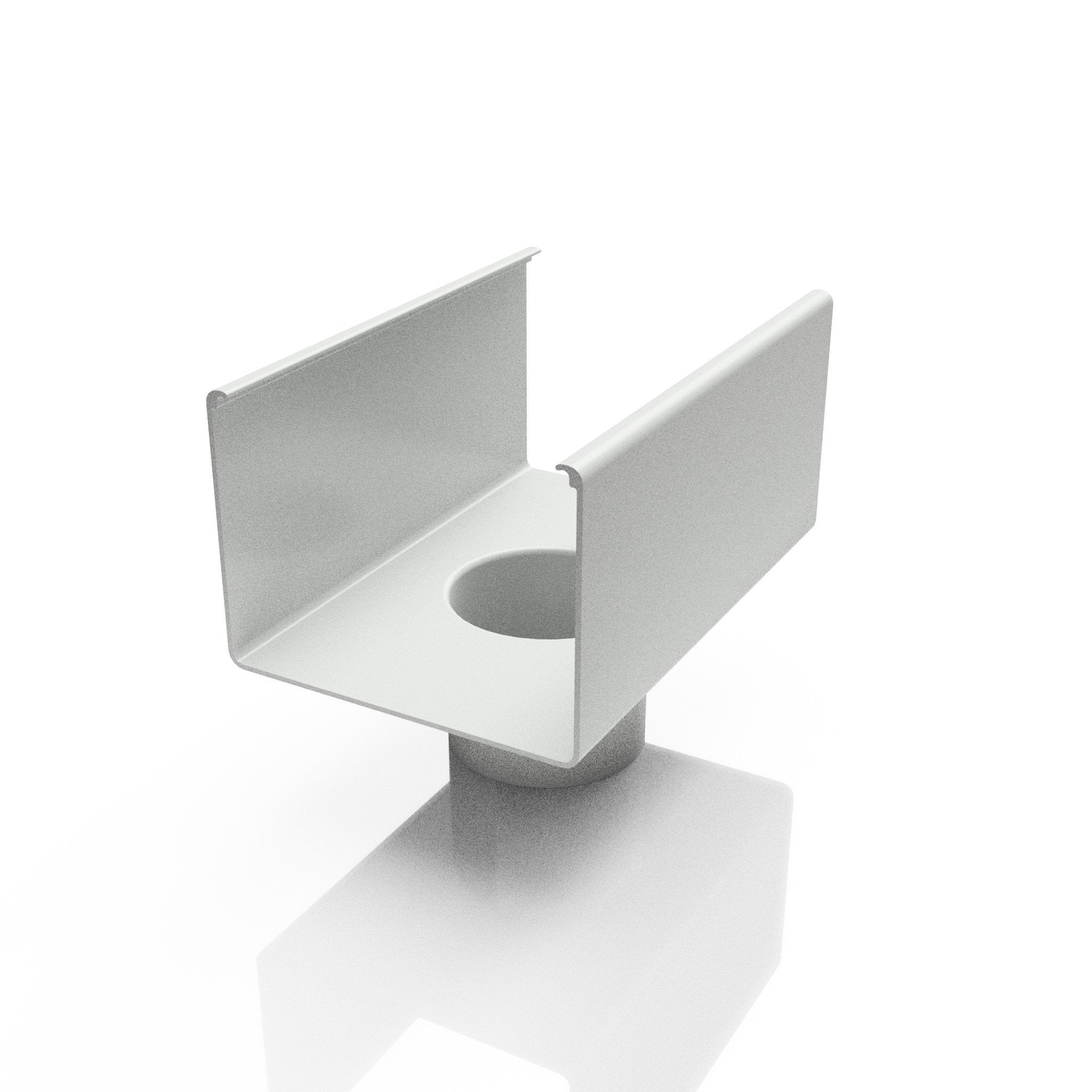

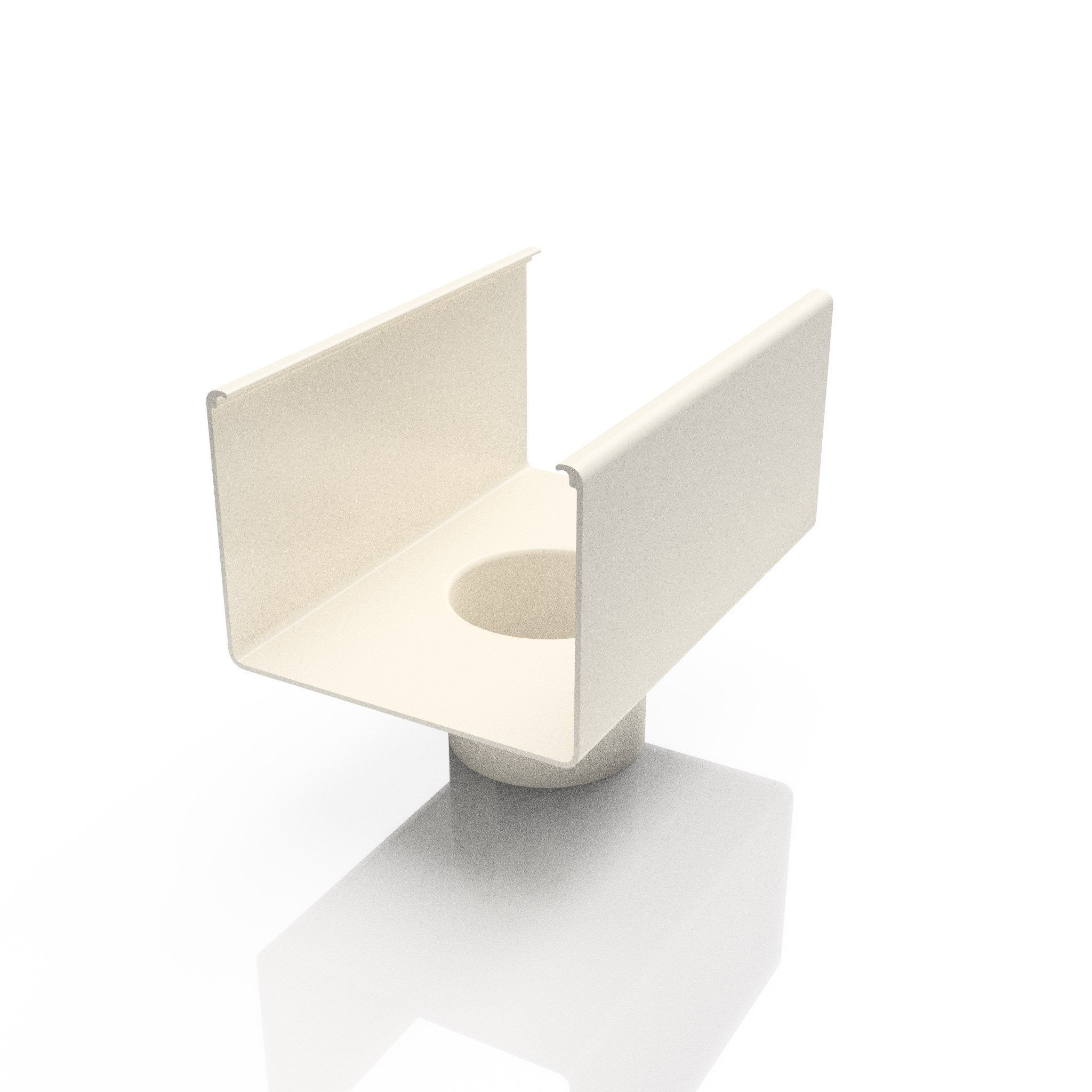

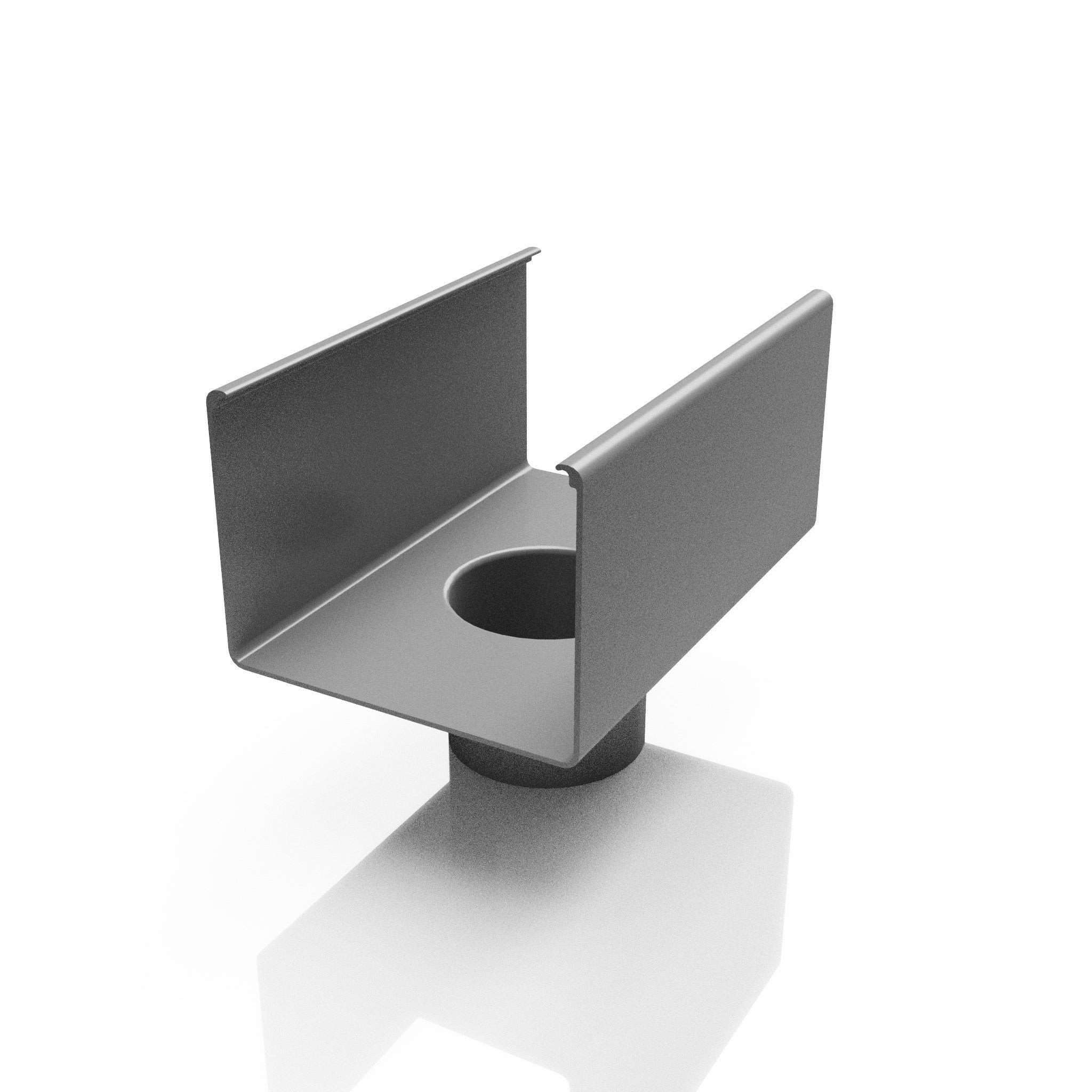

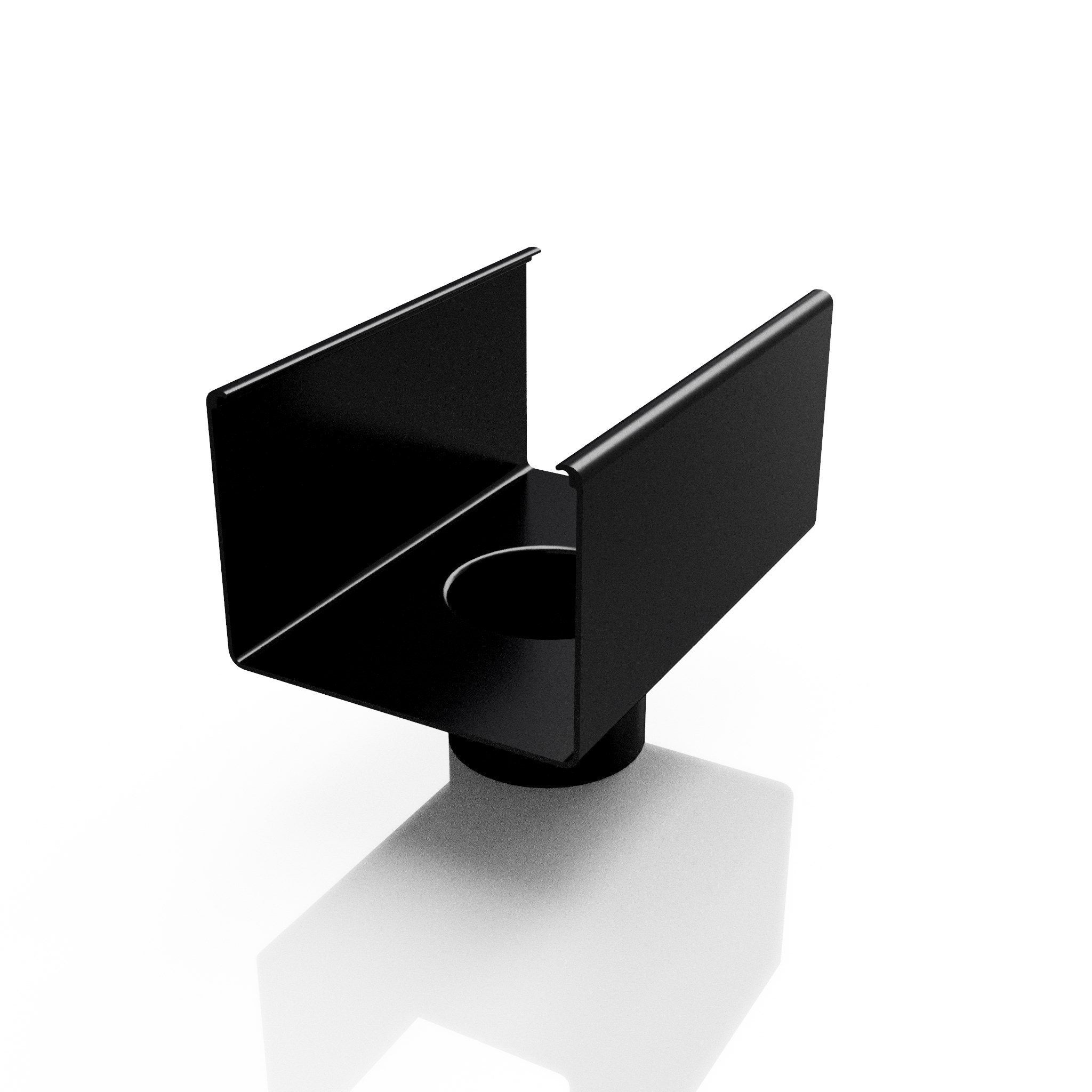

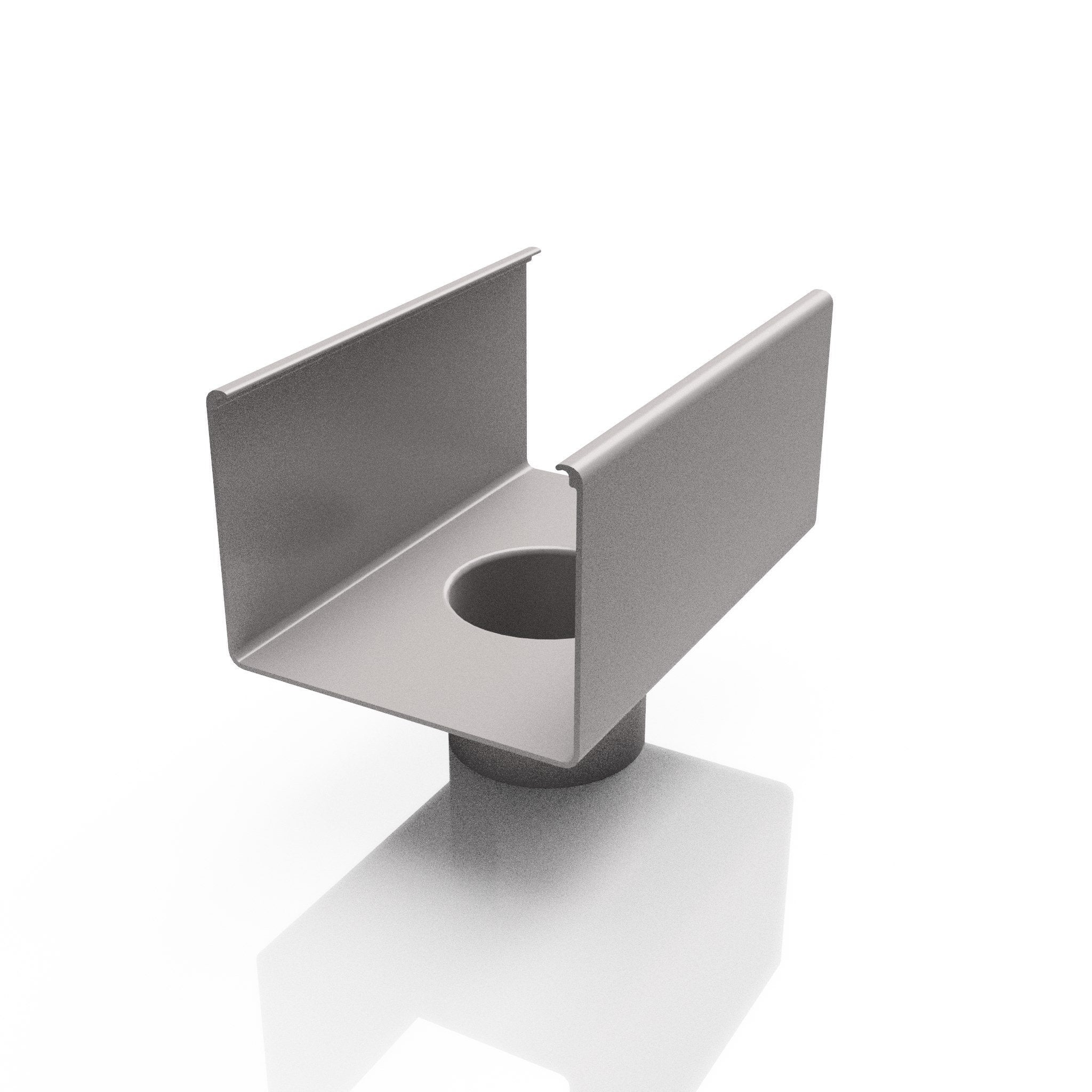

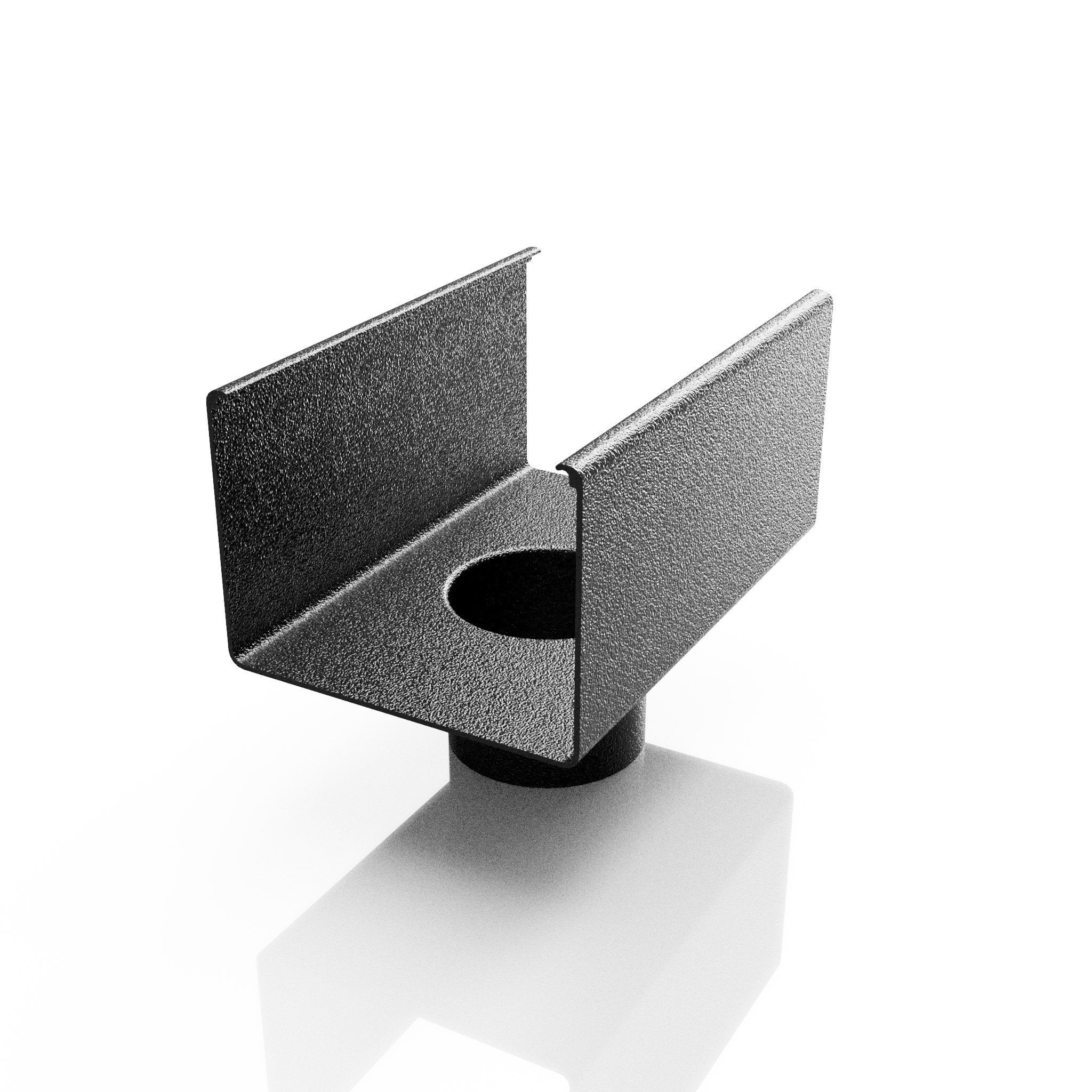

Crafted from 6063 T6 hardened aluminium extrusion, the 135 x 100mm box gutter outlet connects to 76mm diameter downpipe systems. Architectural grade polyester powder coating ensures prolonged protection from rust. A separate jointer (part code GB2) is required at the connection points; this part is clipped down into place using our easy snap-fit jointing method with foam spacers and joint sealant for an adaptable, watertight seal.
Flow capacity: 2.9 l/s at end, 5.9 l/s at centre.
Note: This outlet connects directly to our adjustable downpipe swannecks. If connecting directly to a 3-meter pipe length and not using an adjustable swanneck offsets, a loose internal joint spigot would be required to make the connection (Part code DF764).
Key features:
- Essential for connection to 76mm downpipe systems
- Fits internally with snap-fit for easy assembly
- Dispenses with bolts, screws, rivets, or site drilling
- Uses our unique foam spacer and sealant system for enduring performance without mess
- Fire Classification: EN 13501-1 Rating A2-s1,d0
If you are unsure of your requirements our expert technical team will be pleased to assist. Whether you have a list of parts, architectural drawings or hand sketches please email us your details.
We have a range of installation videos to assist contractors and show how our products are installed.
Our installation guides are available for download and give step by step pictorial instruction.
Our product data sheets contain all relevant information relating to our products. Each sheet also contains interactive tabs linking to other useful resources.
Used by building material specifiers, our product specification sheets give the relevant clauses and product details to be used in building design documents.
Architectural eaves gutter drawings that can be copied into architectural drawings ensuring correct construction design details are followed.
This page allows you to correctly size your gutter and downpipe system according to roof size - in full accordance with the BS EN12056-3 gravity rainwater drainage design standard.
