SKU: C175-TB

Size: 115-175mm Wall Width
Colour: Textured Black
Sale price£92.45

Shipping calculated at checkout


Secret fix aluminium coping 3 metres in length with 70mm downstands. Polyester powder coated with architectural grade exterior paint to decorative faces.
Fixing brackets are sold seperatly.
  • Fix at max. 1500mm centres using hidden brackets (sold separately).
  • Typically fixed to marine grade plywood backing boards (WBP).
  • 3mm expansion gap required at each joint.

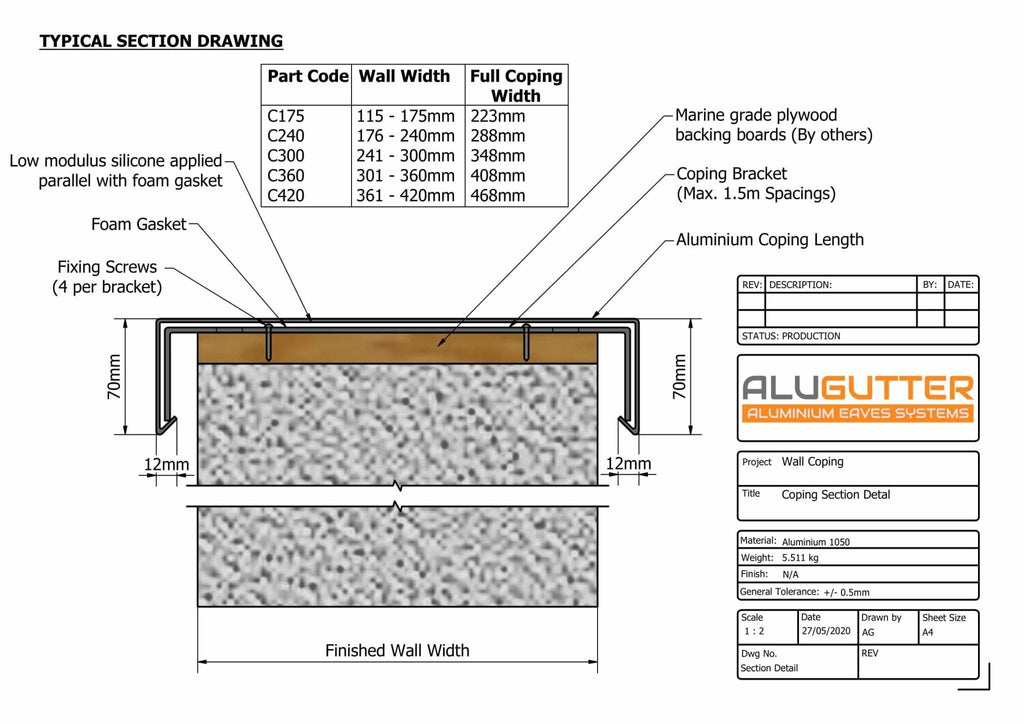

Cross section drawing of coping profile

Request an Estimate

If you are unsure of your requirements our expert technical team will be pleased to assist. Whether you have a list of parts, architectural drawings or hand sketches please email us your details.

Installation Videos

We have a range of installation videos to assist contractors and show how our products are installed.

Installation Guides

Our installation guides are available for download and give step by step pictorial instruction.

Product Data Sheets

Our product data sheets contain all relevant information relating to our products. Each sheet also contains interactive tabs linking to other useful resources.

Product Specifications

Used by building material specifiers, our product specification sheets give the relevant clauses and product details to be used in building design documents.

CAD Eaves Sections

Architectural eaves gutter drawings that can be copied into architectural drawings ensuring correct construction design details are followed.

Eaves Gutter Drainage Design

This document explains how to correctly size gutters according to roof size - in full accordance with the BS EN12056-3 gravity rainwater drainage design standard.
